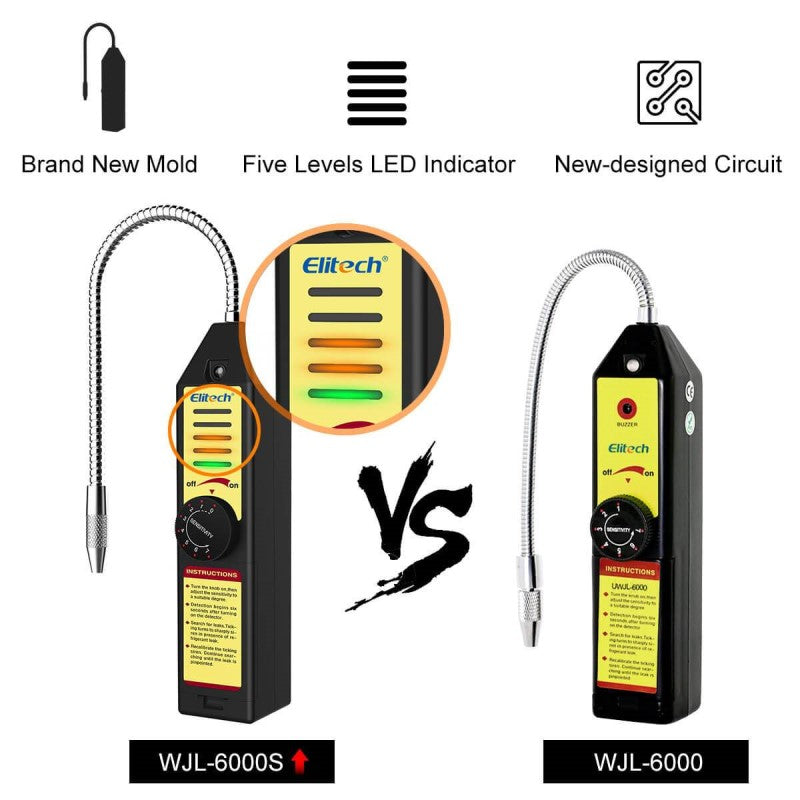

Upgrade version of WJL-6000 refrigerant leak detector. WJL-6000S made improvements in many aspects to realize more reliable and quicker detection. It uses newly designed high-precision MIC and ultra-low power consumption circuit design, ensuring much more stable operation and durable batteries. Moreover, its highest sensitivity increased to 5g/yr. The 5 LED indicator lights allow users to get the idea of leakage amount more vividly.
WJL-6000S Feature
Detects All Common Refrigerants* R11, R22, R134A, R404a, R410A and all halogenated refrigerants including HFCs, CFCs, HCFCs and blends
High Sensitivity* With a maximum sensitivity of up to 5g/yr enables detection of even the smallest leaks
7 Adjustable Sensitivity Levels* To quickly pinpoint leakage in various conditions
Quick Response* within 5 seconds for prompt detection
20cm Flexible Probe* Convenient to detect leakage in hard-to-reach locations
Power Indicator* Dual-color LED light to indicate battery power, Green indicates sufficient power while orange stands for low power.
Visual and Audible Alarm* Both LED light flash alarm and buzzer alarm to alert leakage
Detects All Common Refrigerants* R11, R22, R134a, R404a, R410A and all halogenated refrigerants including HFCs, CFCs, HCFCs and blends |
7 Sensitivity Levels* To quickly pinpoint leakage in various conditions |
Quick Response* Quick response within 5 seconds for prompt detection |
20cm Flexible Probe* Convenient to detect leakage in hard-to-reach locations |
Power Indicator* Dual-color LED light to indicate battery power, Green indicates sufficient power while orange stands for low power |
Visual and Audible Alarm* Both LED light flash alarm and buzzer alarm to alert leakage |
WJL-6000S Specification
Operating temperature | 0 ° C-52 ° C (30 ° F to 125 ° F) |
Maximum sensitivity | 0.21 oz/yr, suitable for all halogenated refrigerants |
Battery life | about 50 hours of normal use |
Response time | instantaneous |
Operation mode | continuous, unlimited |
Fixed probe length | 7.87 (in) |
Dimensions | 1.37 x 1.37 x 5.90 inches |
Warm-up time | about 6 seconds |
Reset time | 2 ~ 10 seconds |
Power supply | 6V DC, 4 AAA alkaline batteries |

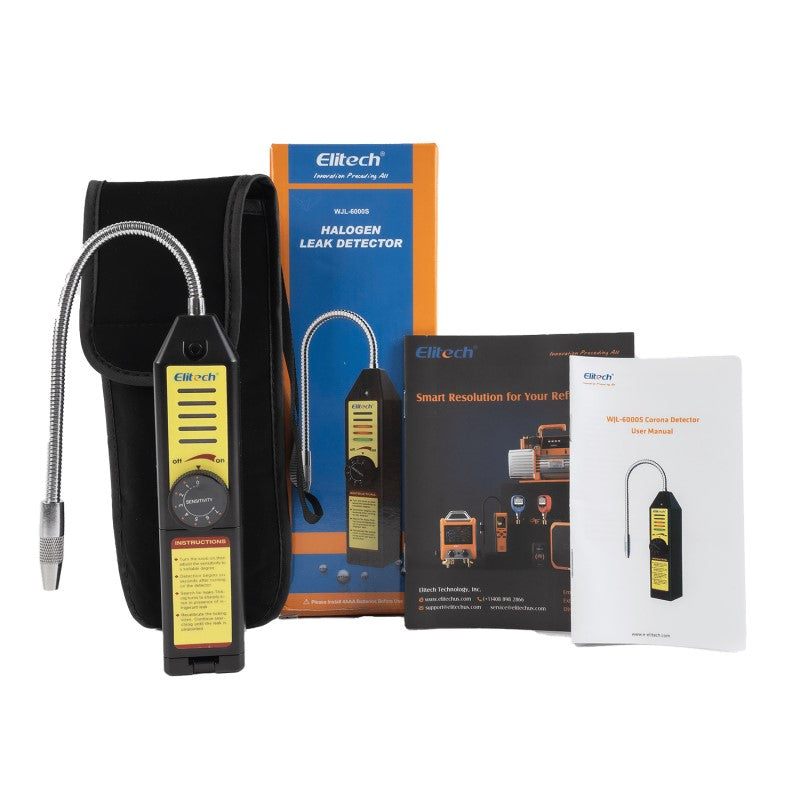

Package includes | 1 detector, 1 handbag, 1 user manual |
Refrigerants Instruction
Type | Details |
CFCs | R11、 R12、 R13、 R502、 R503 |
HCFCs | R22、 R123、 R124、 R141b、 R142b、 R402A、 R402B、 R408A、 R409A |
HFCs | R134a、 R410A、 R407C、 R417A、 R404A、 R507、 R23、 R508A、 R508B、 R152a、R32 |
Blends | AZ-50. HP62. MP39,etc. |
HC | R170、 R290、 R600a、R1270 |
PFC | PFC-14、 PFC-116、 PFC-218 |
C2H4F2 | R152a Difluoroethane |
Elitech WJL-6000S Related Documents
- Elitech WJL-6000S Refrigerant Leak Detector User Manual
- Elitech WJL-6000S Refrigerant Leak Detector ECM Certification
Elitech Refrigerant Leak Detector Comparison
