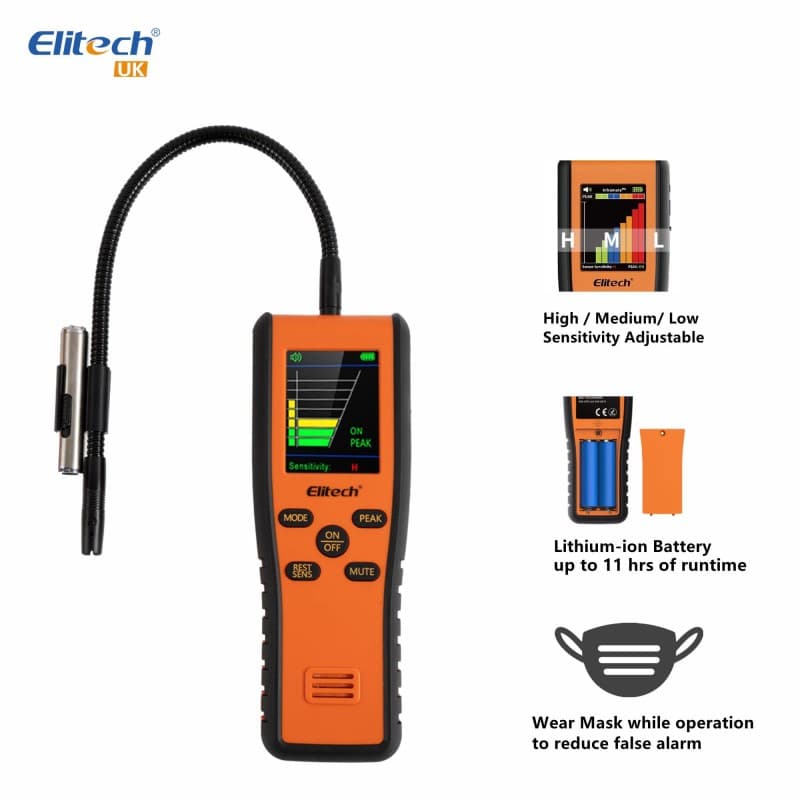

Inframate C Points
- Carbon Dioxide Detection* CO2-Specific infrared sensor is designed specifically for the detection of R744 (CO2) refrigerant leaks.
- Long Sensor Life* An infrared sensor can work up to 40,000 hours and its sensitivity won't degrade over time.
- Large TFT LCD Screen* Vividly displays leakage value, peak value, sensitivity level, battery power for very easy operation.
- Sensitivity Adjustable* With the highest sensitivity of 6g/year, and easy adjustment to medium (14/yr) and low (28g/yr) levels of sensitivity, the detector can help you quickly pinpoint leakage in various complex working conditions.
- Rechargeable Lithium Battery* Works up to 11 hours continuously on one full charge.
Inframate C Parameter
Sensor Type | Infrared |
Sensor Sensibility | High: 6g/year Medium: 14g/year Low:28g/year |
Sensor Life | 40,000 hours |
Detectable Gases | R744 (CO2) |
Auto OFF | After 10min of inactivity |
Power | Two 18650 Lithium-ion Batteries |
Battery Runtime | Up to 11 hours upon one full charge |
Charging Time | Within 4hrs |
Charging Voltage | DC 5V, 1A |
Storage Temperature | -20°C~ 60°C (-4°F~ 140°F) |
Operating Environment | Temperature: -10°C~ 52°C (-4°F~ 140°F) Humidity: Max.90% RH (non-condensing) |
Alarm Mode | Audible and Visual |
Tool Size | 201*72*35mm (7.9*2.8*1.4in.) |
Tool Weight | 450g (15.9oz) |
Certification | CE, SAE_J1627 |
Inframate C Feature
|
|
|

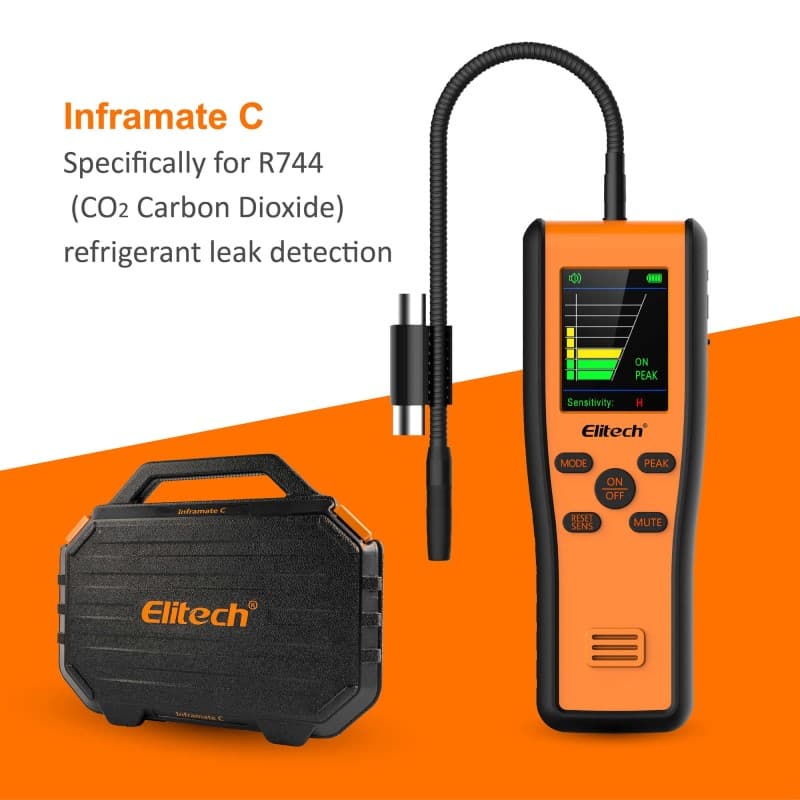

Carbon Dioxide Detection*
The high sensitivity of 6g/y for detection of R744 (CO2) refrigerant leaks |

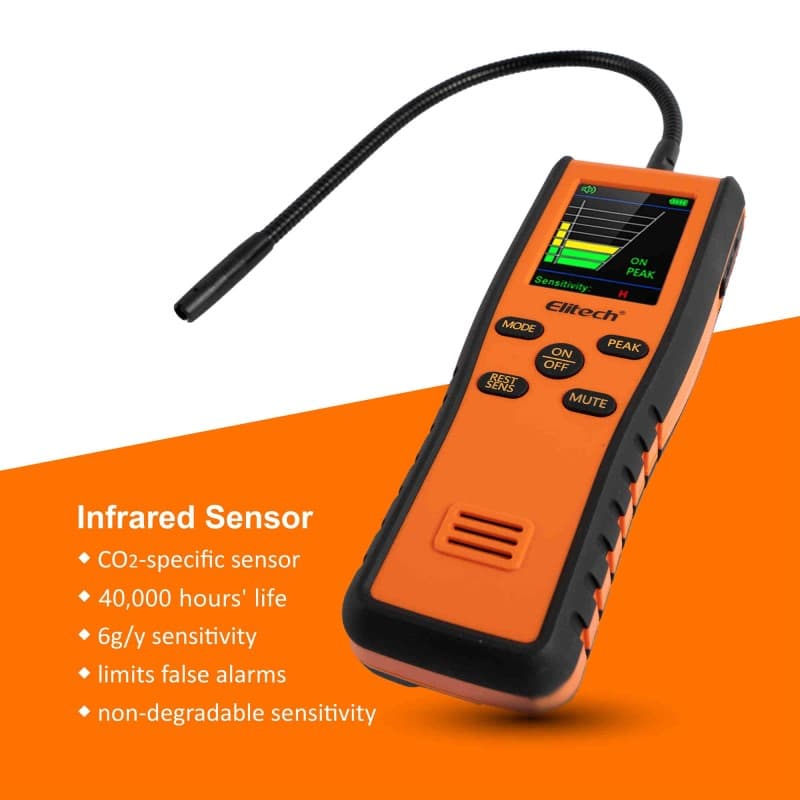

Infrared Sensor*
CO2 Specific sensor lasts over 10 years and sensitivity will not degrade over time |
Sensitivity Adjustable*
High/Medium/Low sensitivity selections to quickly pinpoint leakage in various environments |
|
|
|
Large TFT Screen*
Displays leakage value, peak value, sensitivity level, battery power vividly, for very easy operation |
Rechargeable Lithium Batteries*
Works up to 11hrs on one full charge |
Backup Parts*
An extension probe is included to extend probe distance. Five replacement filters are included for easy maintenance to better protect the sensor |
