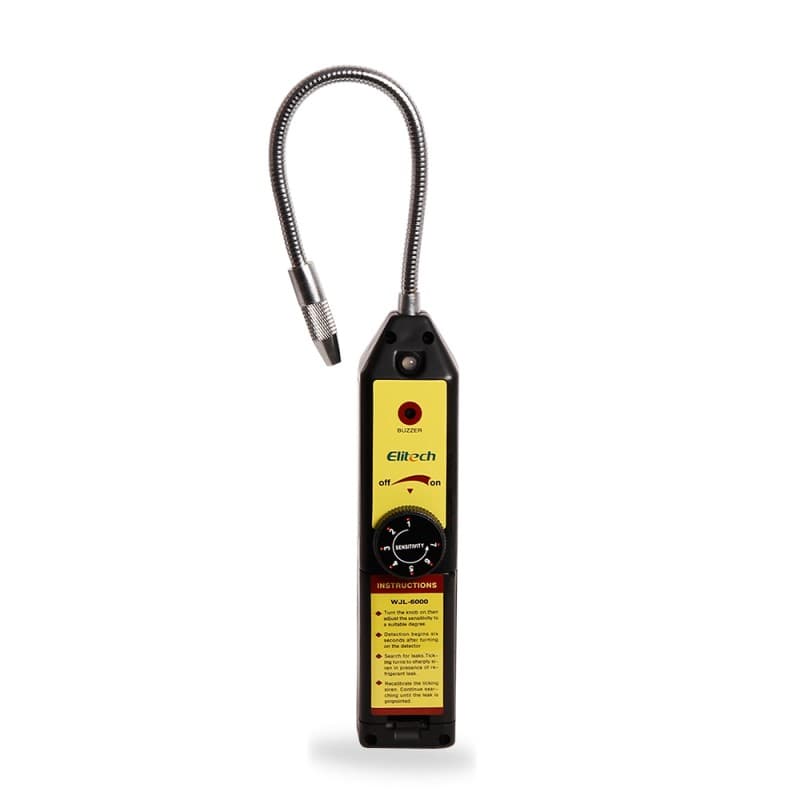

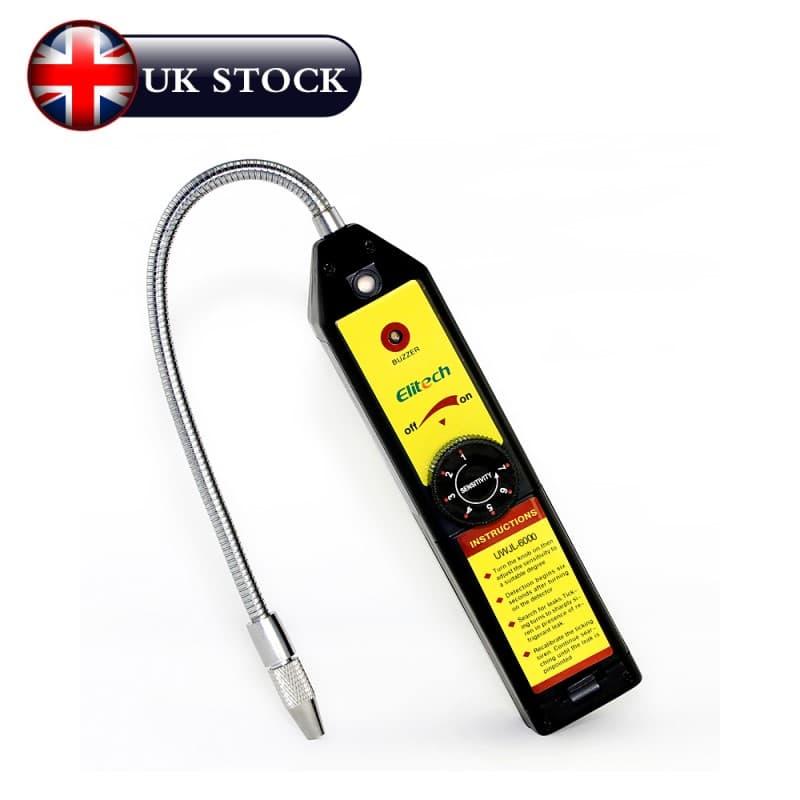

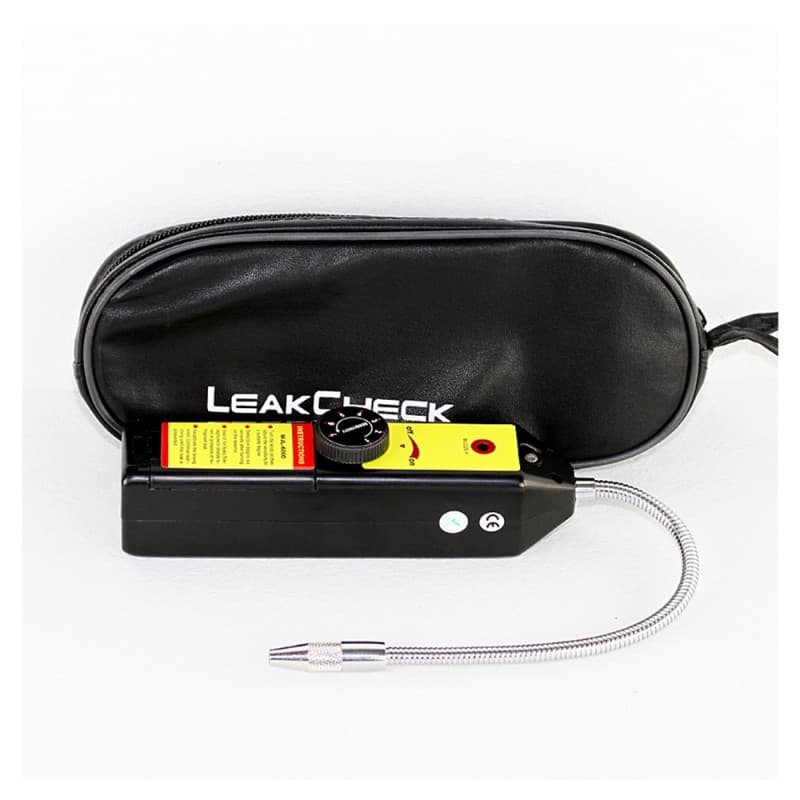

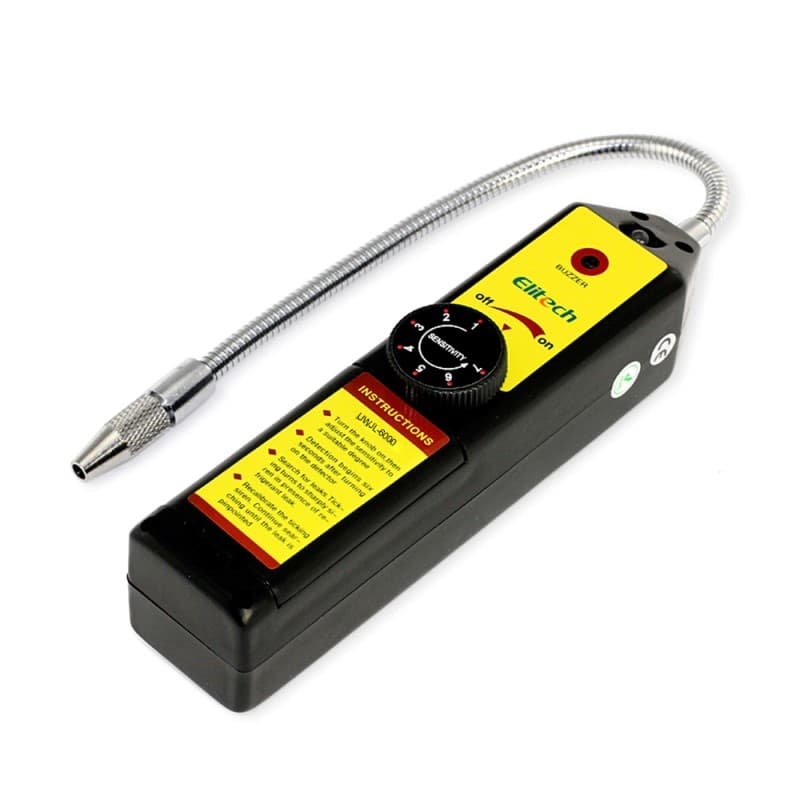

Elitech WJL-6000 Refrigerant Leak Detector Corona Sensor HVAC Halogen Gas Tester

2 sold in last 8 hours

Elitech WJL-6000 Halogen Leak Detector 100% Elitech new Halogen Gas HFC CFC Refrigerant Leak Detector Checker. --Its advanced detection technology enables it to recognize all HFC (134a) CFC refrigerants. -Audio and visual alerts warn of any leakages, no matter how small.

Features

  • 1. Detect...

customers are viewing this product

Elitech WJL-6000 Halogen Leak Detector 100% Elitech new Halogen Gas HFC CFC Refrigerant Leak Detector Checker. --Its advanced detection technology enables it to recognize all HFC (134a) CFC refrigerants. -Audio and visual alerts warn of any leakages, no matter how small.

Features

  • 1. Detect all kinds of halogen refrigerant gases;

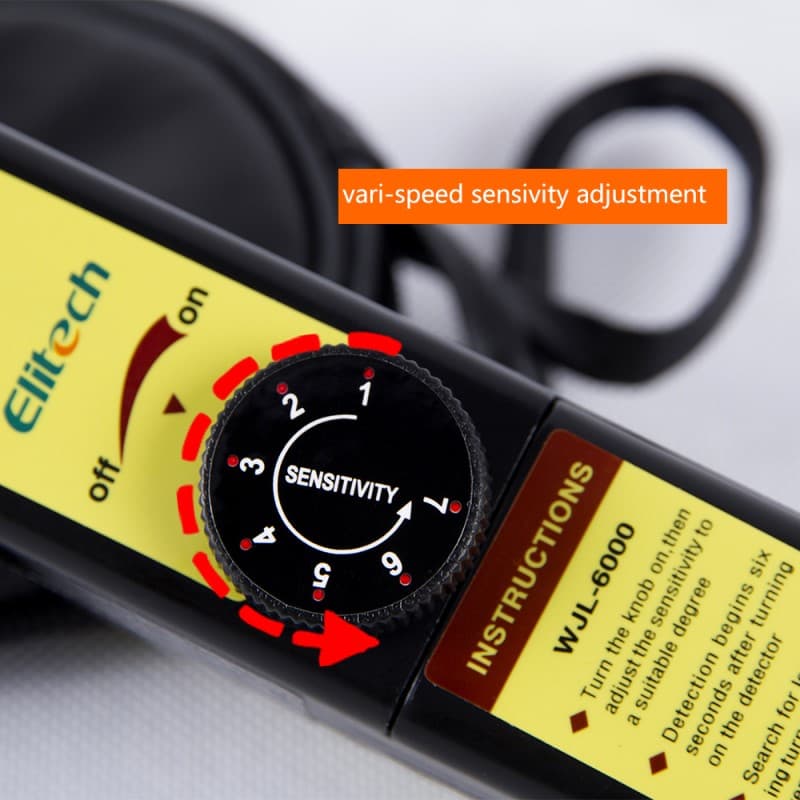

  • 2. Sensitivity adjusted at any time and it can be adjusted automatically to the best state of detecting;
  • 3. Inner precise IC with ultra-low power consumption circuit design, more stable, longer battery life;
  • 4. Dual-color visual display of battery voltage;
  • 5. Excellent sensor, high sensitivity, long lifetime.

Applications

It will respond to all halogenated (contains Chlorine of Fluorine) refrigerants. This includes, but is not limited to:

  • CFCs e.g.R12, R11, R500, R503, etc.
  • HCFCs e.g. R22, R123, R124, R502, etc.
  • HFCs e.g. R134a, R404s, R125, etc.
  • Blends such as AZ-50, HP62, MP39, etc.

Detect Ethylene Oxide gas leaks in hospital sterilizing equipment(it will detect the halogenated carrier gas).

Detect SF-6 in high voltage circuit breakers.
Detect most gases that contain chlorine, fluorine, and bromine (halogen gases).
Detect cleaning agents used in dry cleaning applications such as perchloroethylene.

Parameter

Operating temperature 0℃-52℃(30°F to 125°F)
Maximum sensitivity 6 g/yr, for all halogenated refrigerants
Battery life approximately 50 hours normal use
Response time Instantaneous
Operating mode continuous, no limitation
Fixed probe length 20cm
Warm-up time approximately 6 seconds
Reset time 2-10 seconds
Power supply 6V DC, 4 AAA alkaline batteries



Elitech WJL-6000 Refrigerant Leak Detector User Manual
