Elitech SVP-7 Intelligent 2-Stage Vacuum Pump, 7CFM,3S/L, APP Control, Data Logging, Smart Control, HVAC Refrigerator Auto Air Condition Service Tool

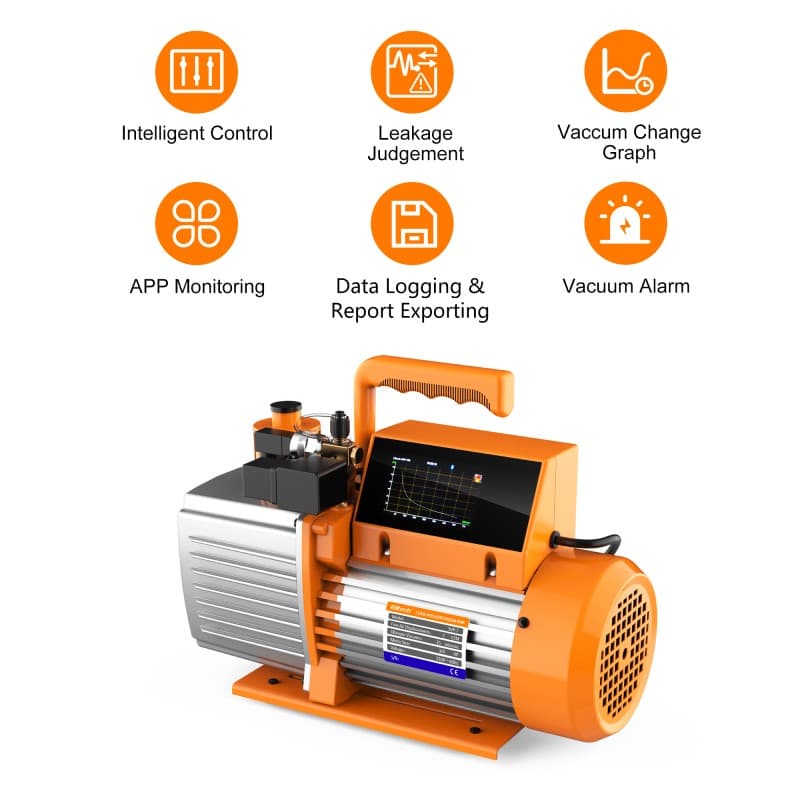

Elitech SVP-7 Vacuum Pump Features
Intelligent Control* The motor and solenoid valve will turn off automatically once the programmed vacuum value is reached....
Elitech SVP-7 Vacuum Pump Features
Intelligent Control* The motor and solenoid valve will turn off automatically once the programmed vacuum value is reached. When the pump sensed working temperature is abnormally high due to motor failure or insufficient oil, the pump will automatically close the solenoid valve to protect it from big defects.
System Leakage Judgement* Based on sophisticated analysis of vacuum value change and pump working status, the pump will judge system leakage level and display leakage level in the bar for easy reference.

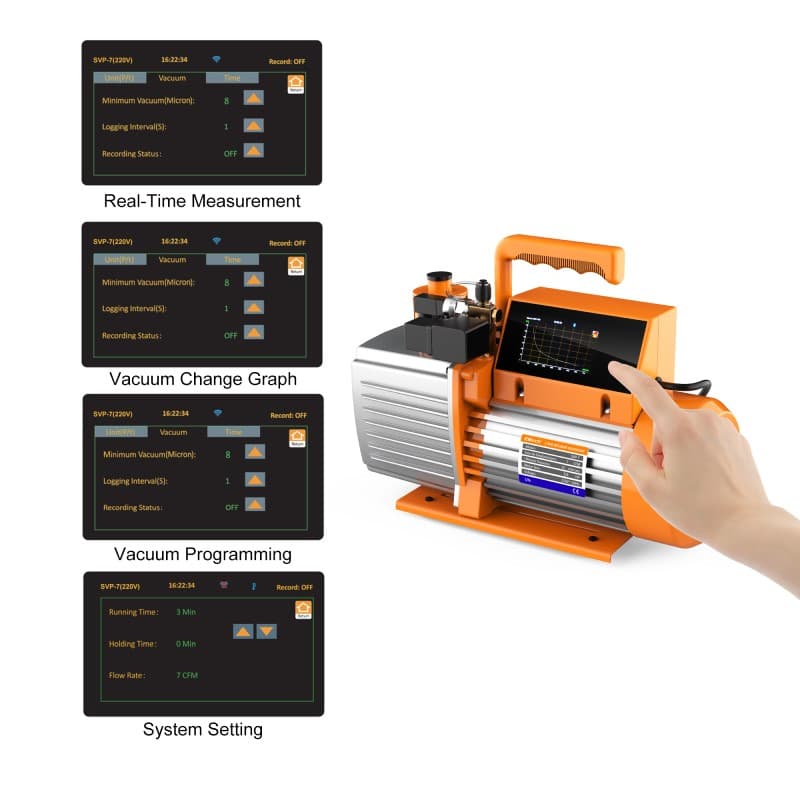

Vacuum Value & Graph Display* When the vacuum value drops below 60,000 microns, the real-time vacuum value and graph will show on the 4'' touch screen for quick knowledge.

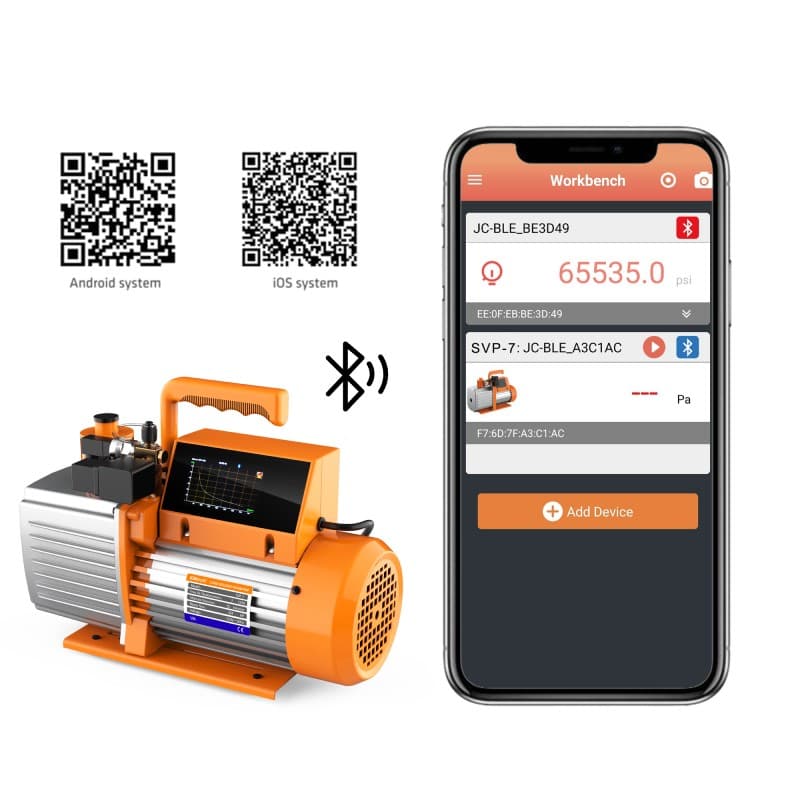

APP Monitoring* The pump can be controlled through APP via Bluetooth connection at a distance of 30ft/10m maximum. Everything about the pump can be easily viewed and controlled via APP.
Estimated Working Hour Needed* The pump can estimate the working hours needed to complete the task and display the remaining working time to keep users on top of vacuuming progress.
Data Logging & Report Exporting* Each task's vacuum graph can be stored and viewed on APP. Reports can be exported in excel or PDF formats. Besides, you can also save and export screenshots of the working interface in PDF.
 |
 |
 |
|
Intelligent Control |
Vacuum Value & Graph Display |
Vacuum Value & Graph Display |
 |
 |
 |
|
APP Monitoring |
Estimated Working Hour Needed | Data Logging & Report Exporting |

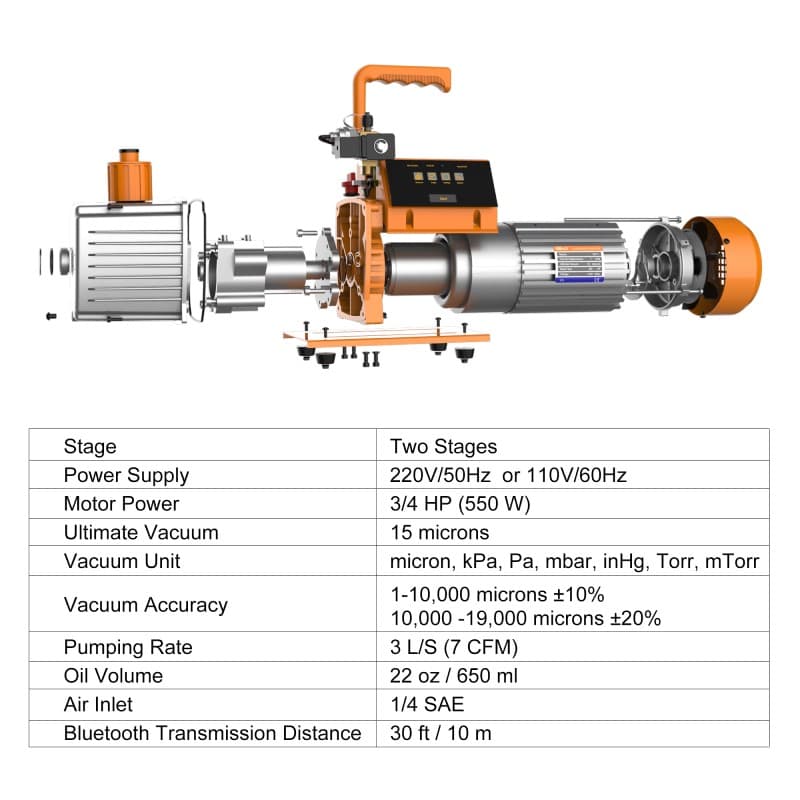

Elitech SVP-7 Vacuum Pump Specification
| Model# | SVP-7 |
| Stage | Two Stages |
| Power Supply | 220V/50Hz or 110V/60Hz |
| Motor | AC Induction Motor |
| Motor Power | 3/4 HP (550 W) |
| Ultimate Vacuum | 15 microns |
| Vacuum Unit | micron, kPa, Pa, mbar, inHg, Torr, mTorr |
| Vacuum Accuracy | 1-10,000 microns ±10% |
| 10,000 -19,000 microns ±20% | |
| Operating Temperature | 5°C~ 40°C (41°F~ 104°F) |
| Bluetooth Transmission Distance | 30 ft / 10 m |
| Pumping Rate | 3 L/S (7 CFM) |
| Oil Volume | 22 oz / 650 ml |
| Air Inlet | 1/4 SAE |
| Tool Dimension | 470*267*380 mm / 18.5*10.5*14.8 in. |
| Gross Weight | 34.2 lbs / 14.8 kg |
Elitech SVP-7 Vacuum Pump Package
Vacuum Pump ×1
Bottles of Oil ×2
Elitech SVP-7 Related Documents
