Elitech ATC-800+ Digital Temperature Controller 10A Heating and 20A Cooling Control Outputs With 0.1℃ Resolution
Elitech ATC-800+ (ATC800+)temperature controller thermostat with a large Three-digital LCD, it has an all-in-one package that works with both heating and cooling system.
One-way sensor input: temperature probe...
Elitech ATC-800+ (ATC800+)temperature controller thermostat with a large Three-digital LCD, it has an all-in-one package that works with both heating and cooling system.
One-way sensor input: temperature probe sensor.

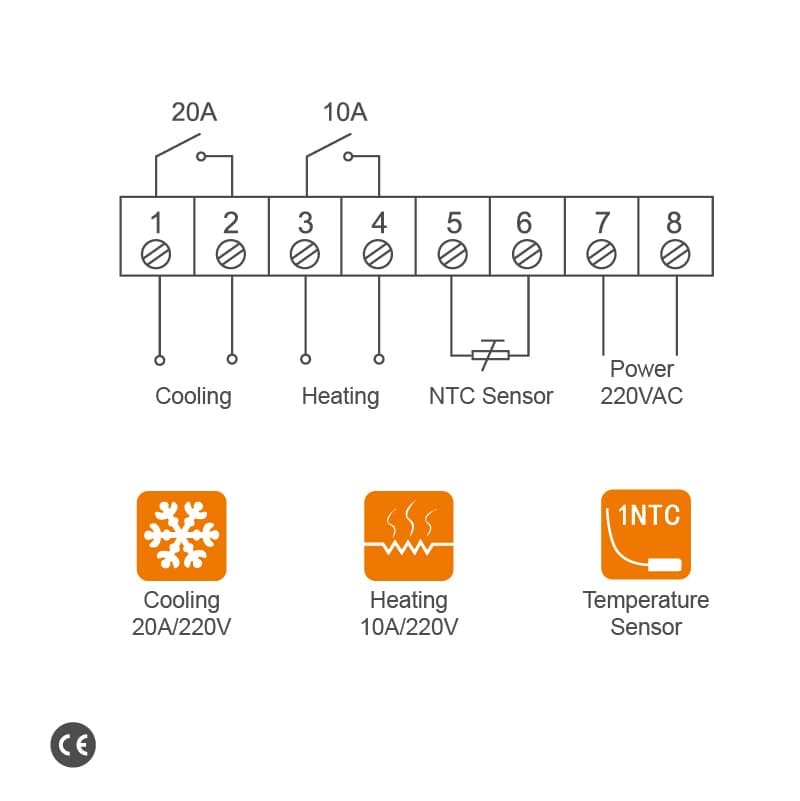

Two-way control output: cooling and heating
Elitech ATC-800+ thermostat controls temperature by setting the temperature setting value and the difference value, and when the temperature exceeds measuring range, or sensor open circuit or short circuit will alarm warning.

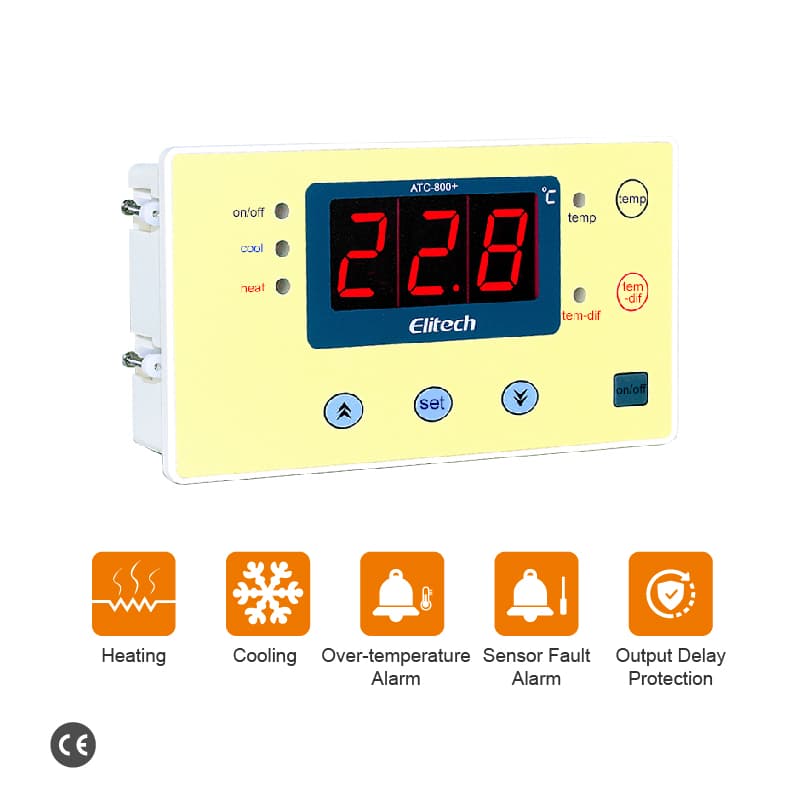

Elitech ATC-800+ thermostat function: automatic cooling and heating switch, output delay protection, real-time monitor and display, over-temperature alarm, sensor fault alarm, and temperature calibration.
Elitech ATC-800+ temperature controller thermostat can be widely used in areas that need automatic temperature controls such as snake rack, homebrew, pet breeding, seeding heat mat, aquarium, seafood machine, aquaculture, hatchery/incubator farming, greenhouse planting, brew, ferment, fridge, freezer, slow cooker, etc.
Elitech ATC-800+ Parameter & Main Function
Elitech ATC-800+ Thermostat Features

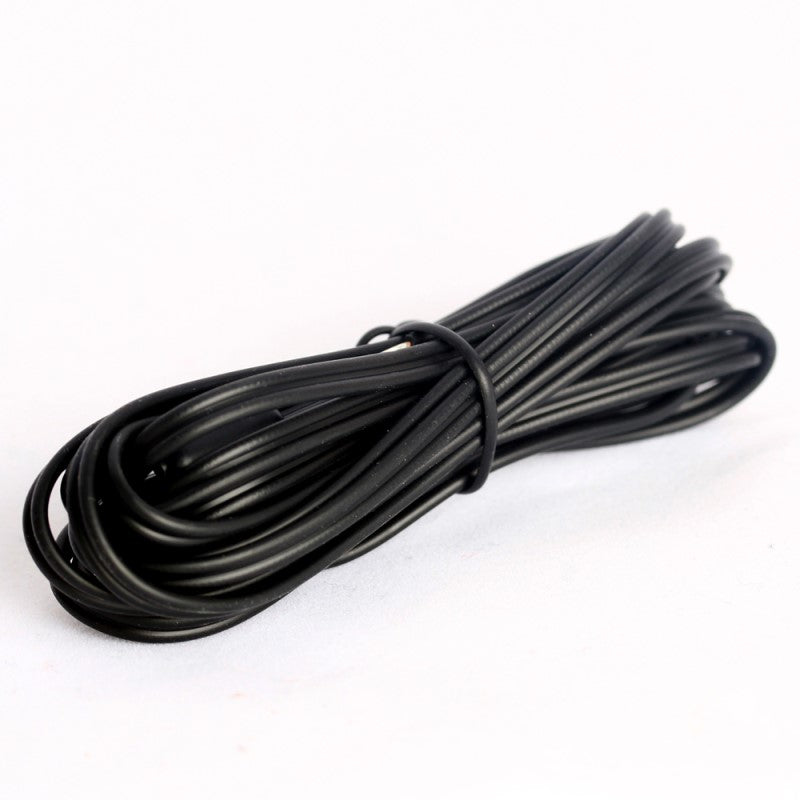

- Auto Heating and Cooling Switch - Automatic switch between refrigerating and heating, always keep the temperature in an ideal range, with 2m stable and high accuracy sensor.
- Stable & Reliable - Pass EMC test, industrial level four test.
- Wide Control Range, Wider Application - The temperature control range is -50℃～99℃, Can be used for multiple applications
- Multiple Alarm, More Reliable - Over-temperature alarm and sensor fault alarm.
- High-temperature Resolution 0.1℃
- All-in-one package, Easy Use
 |
 |
 |
| Auto Heating and Cooling Switch* | Stable & Reliable* | Wide Control Range, Wider Application* |
 |
 |
 |
| Multiple Alarm, More Reliable | High-temperature Resolution 0.1℃* | All-in-one package, Easy Use* |

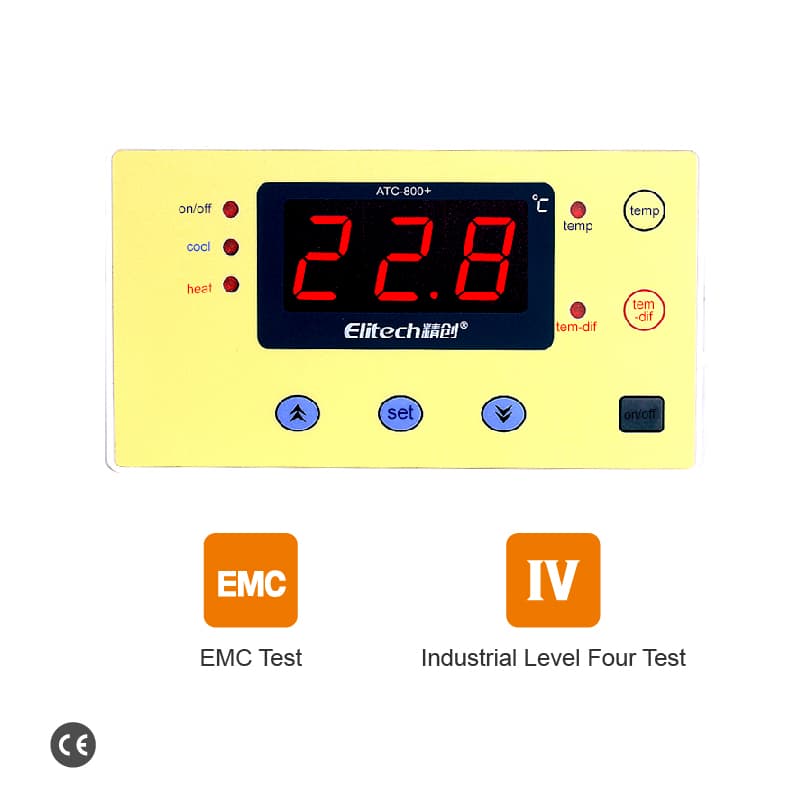

Elitech ATC-800+ Thermostat Panel Instruction
Elitech Thermostat Comparison
-The power supply should conform to the voltage value indicated in the instruction.
-To avoid the interference, the sensor down-lead and power wire should be kept in a distance.
-Please note that the controller will only act as a relay switch for your heater/cooler - it will not supply electric power directly from the terminals.
