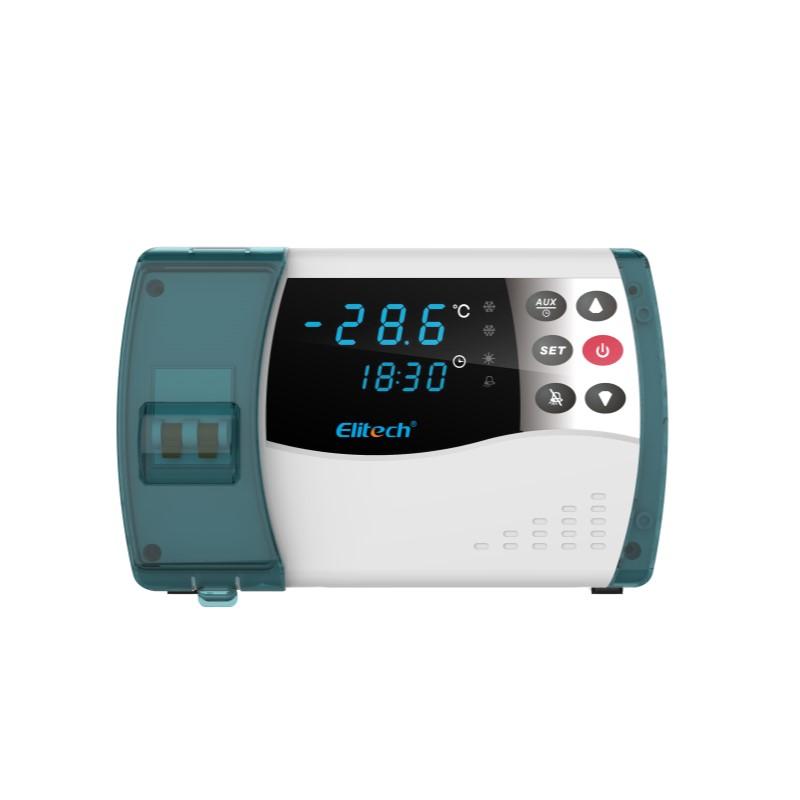

Elitech ECB-1000S Plastic Electric Control Panel With Refrigeration 3HP, Defrost, Fan, Light and Alarm Output 100-240VAC
Elitech ECB-1000S electric control panel is a plastic shell electric control box with a single-phase power supply. suitable for temperature control with refrigeration, defrost, fan, light and alarm output. The compressor relay capacity is...
Elitech ECB-1000S electric control panel is a plastic shell electric control box with a single-phase power supply. suitable for temperature control with refrigeration, defrost, fan, light and alarm output. The compressor relay capacity is 50A/240VAC, can directly drive a single-phase compressor 3HP. With Force defrost ultra-high temperature alarm, ultra-low temperature alarm, sensor fault alarm and time display functions.
It also has Fahrenheit Celsius conversion function, and It is equipped with RS-485 serial interface, which can be connected via MODBUS-RTU communication mode.
Elitech ECB-1000S electric control panel is suitable for temperature control of commercial and industrial refrigeration, hotels, household freezers, refrigerators, small and medium cold storage, refrigeration devices of 3HP and below.
Three-way signal input: temperature probe sensor, defrost probe sensor, door switch.
Five-way control output: compressor, defrost, fan, light, alarm.
Elitech ECB-1000S Function
|Model||Control Output||Signal Input|
|Compressor||Defrost||Fan||Light||Alarm||Temperature Sensor||Defrost Sensor||Door Switch|
|Power Supply||100-240VAC; 50/60HZ|
|Overall Power Consumption||<5W|
|Temperature Measurement Range||-45~99℃|
|Temperature Control Range||-40~90℃|
|Temperature Measurement Accuracy||±1℃|
|Relay Capacity (Compressor)||50A/240VAC; 3HP/220VA, 1.5P/110V;|
|Relay Capacity (Defrost)||8A/220VAC|
|Relay Capacity (Fan)||5A/220VAC, 500W(Max)|
|Relay Capacity (Light)||5A/220VAC, 500W(Max)|
|Relay Capacity (Alarm)||5A/220VAC|
|Product Size||261*167.5*92 mm|
|Sensor Type||NTC (10KQ/25 °C, B-3435K)|
- Fahrenheit and Celsius conversion function
- Possess 485 communication interface
- The large-screen blue digital tube displays all information, making it more convenient to use.
- The shell is made of ABS flame retardant material, which is waterproof and makes the electric control box more stable and reliable.
- Password protection, avoid misoperation by personnel.
- Waterproof, dustproof and shockproof.
- High/Low-temperature alarm, sensor fault alarm.
- Force defrost function.
- Beautiful appearance, simple operation.
- Energy night saving mode.
