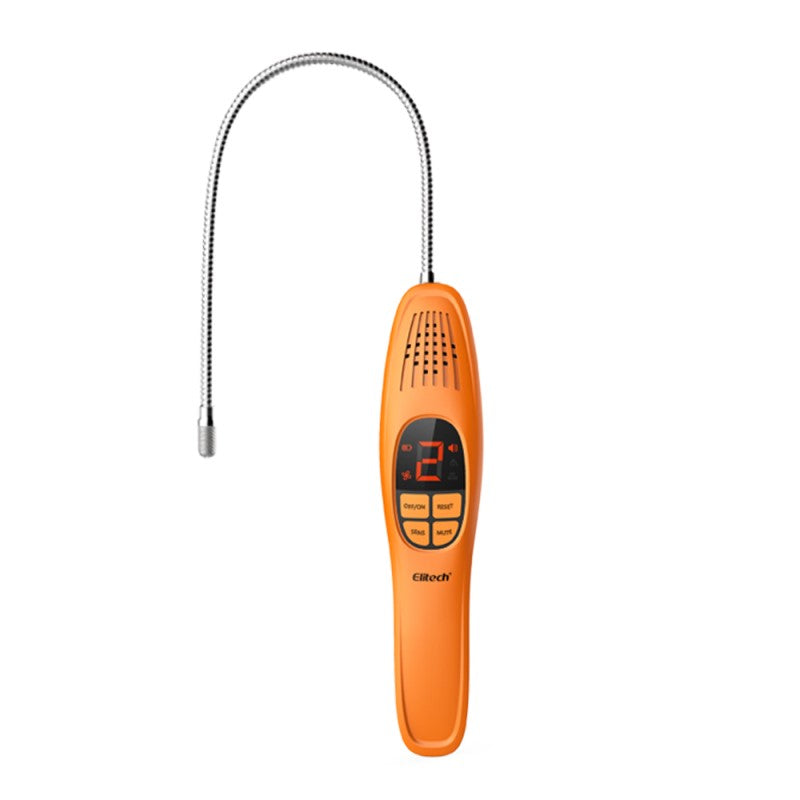

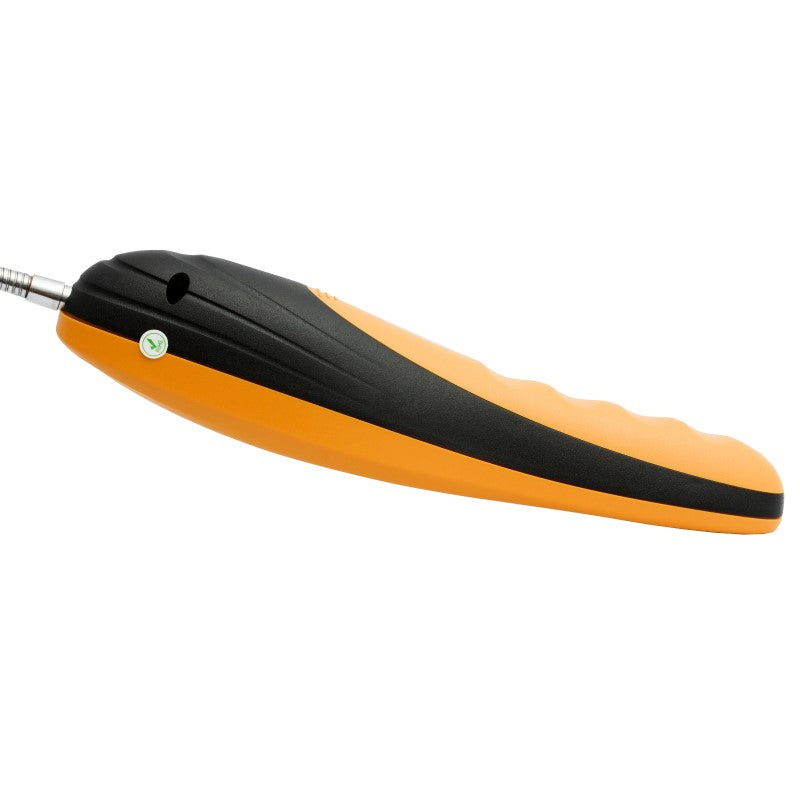

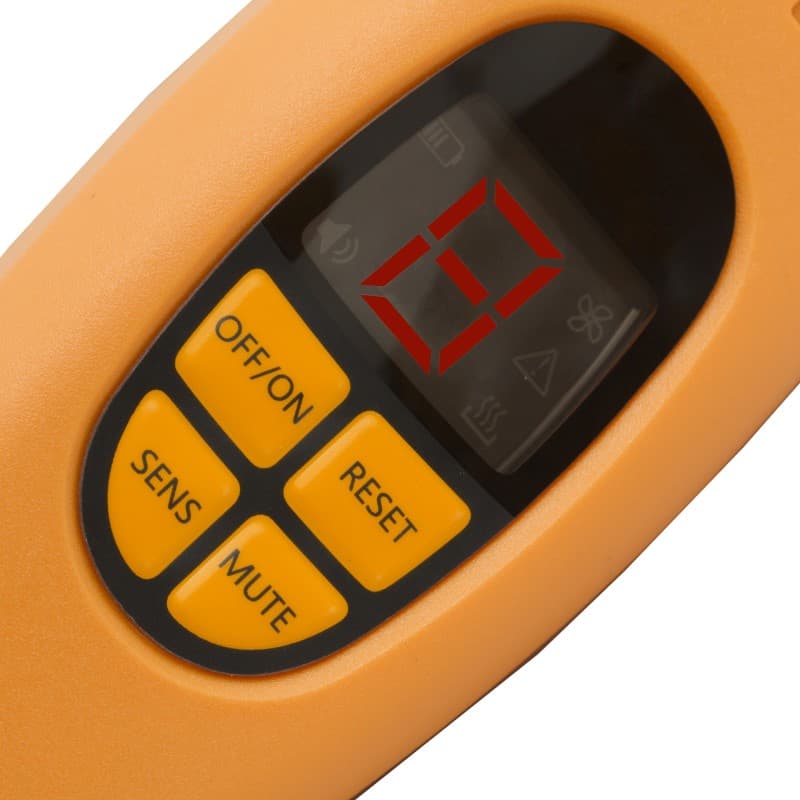

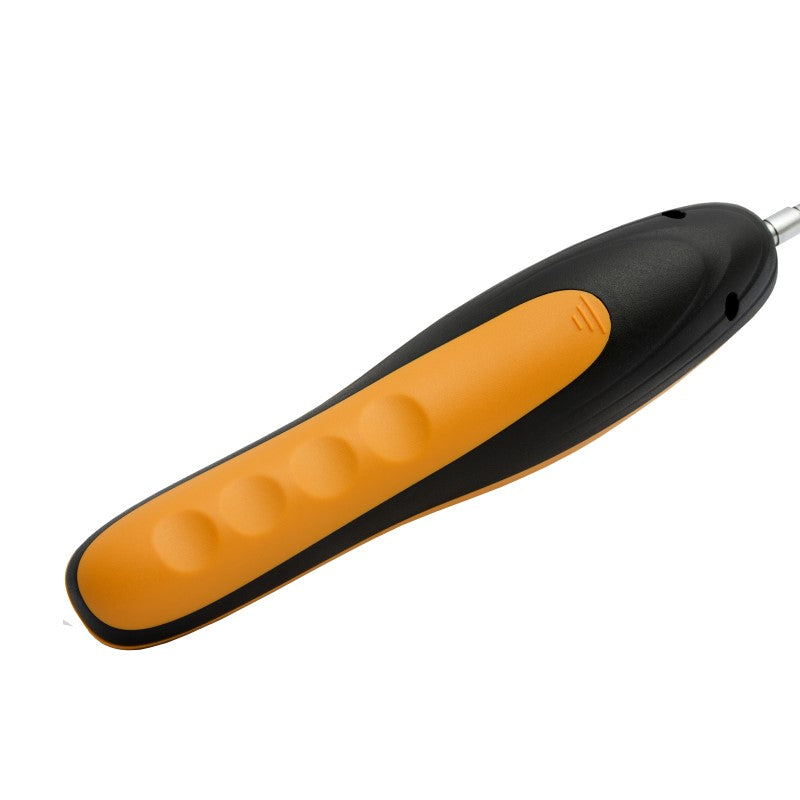

Elitech LD-200 Refrigerant Halogen Gas Leak Detector HVAC Heated Diode Freon Halogen Gas Tester-Rechargeable
Elitech LD-200 Refrigerant Leak Detector offers the greatest sensitivity and short response time of any portable refrigerant detector available. This is achieved through the employment of a high sensitive heated diode sensor combined with a sophisticated microprocessor-controlled circuit.
This refrigerant leak detector responds to all halogenated refrigerants (including Chlorine...
Elitech LD-200 Refrigerant Leak Detector offers the greatest sensitivity and short response time of any portable refrigerant detector available. This is achieved through the employment of a high sensitive heated diode sensor combined with a sophisticated microprocessor-controlled circuit.
This refrigerant leak detector responds to all halogenated refrigerants (including Chlorine and Fluorine), which include but are not limited to: CFCs: R12, R11, R500, R503, etc. HCFCs: R22, R123, R124, R502, etc. HFCs: R134a, R404a, R410a, R407C, etc. CH: R600a.
Product Features
- 【High Sensitivity】 Extremely high sensitivity of 3g/y enables detection of even the smallest leaks
- 【Detects All Common Refrigerants】 R11, R22, R134A, R404a, R410A and all halogenated refrigerants including HFCs, CFCs, HCFCs, and blends
- 【Quick Response】 within 3 seconds for prompt detection
- 【7 Adjustable Sensitivity Levels】 To quickly pinpoint leakage in various conditions
- 【Industry Standards Certified】 Conform to CE standard and SAEJ1627 standard
Product Specifications
| Sensor Type | Heated diode |
| Detectable Gases | CFCs, HFCs, HCFCs, HCs, HFOs, and blends |
| Sensitivity | 3g/y |
| Response Time | <3s |
| Warm-up Time | <30s |
| Operating Environment | Temperature: 0°C~ 50°C; Humidity: ＜ 80%RH (non-condensing) |
| Battery | 3.7V Lithium Battery |
| Service | 1-year repair service |
