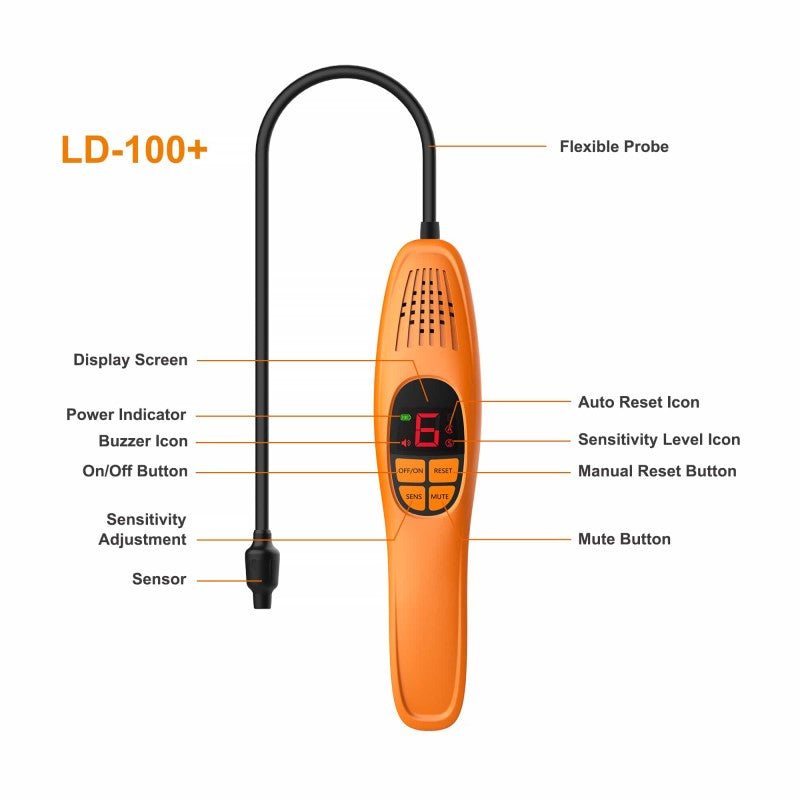

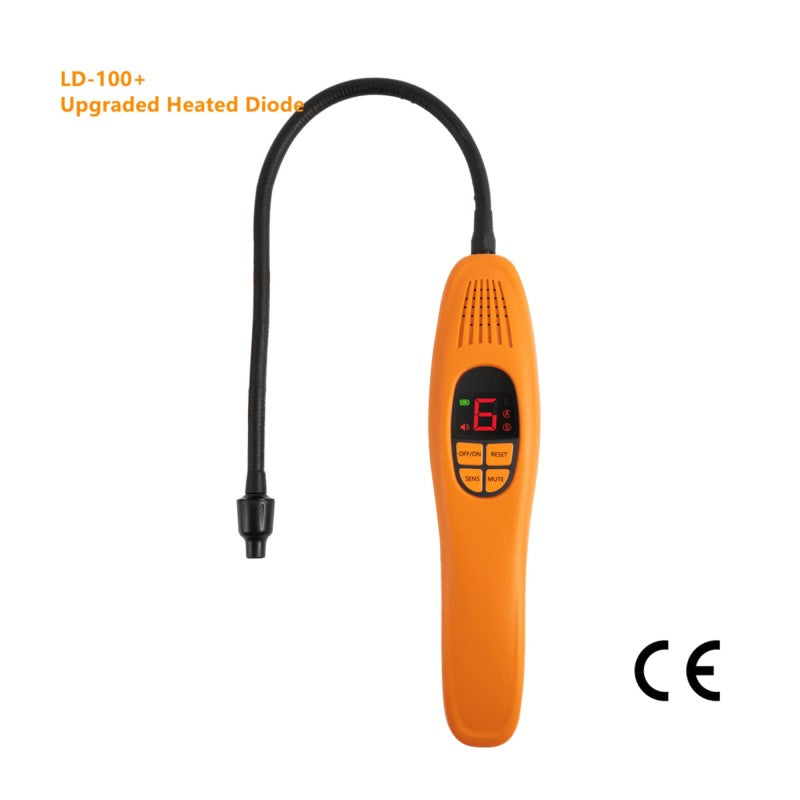

Elitech LD-100+ Upgraded Heated Diode Refrigerant Leak Detector, HVAC & Auto Air Conditioning Service Tool
2
sold in last
8
hours
LD-100+
Elitech LD-100+ is an upgraded version of LD-100. Compared with an ordinary corona sensor, the heated diode sensor features a much longer lifetime, up to 500...
customers are viewing this product

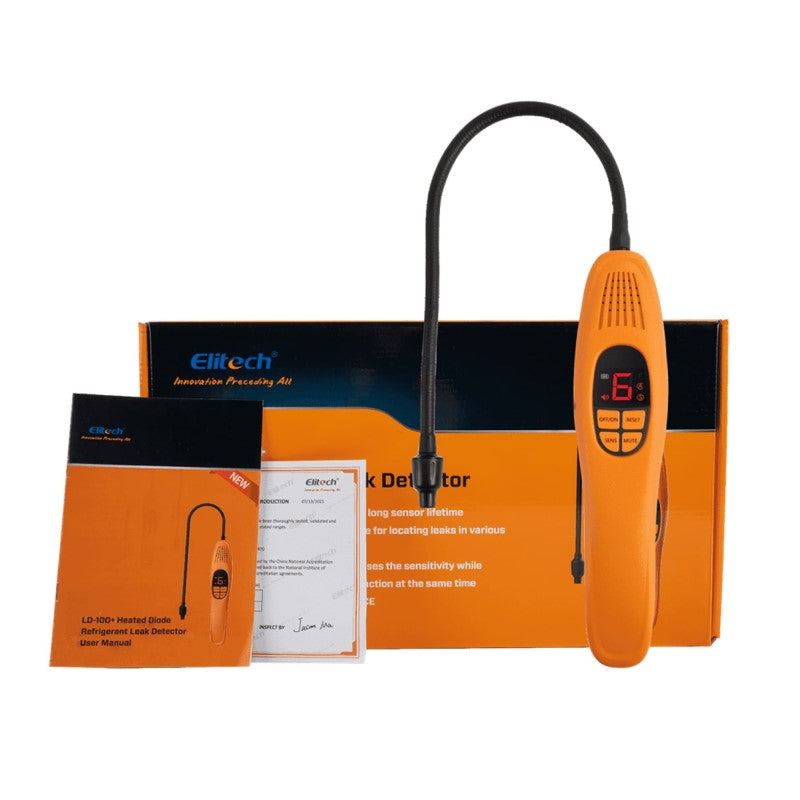

Elitech LD-100+ is an upgraded version of LD-100. Compared with an ordinary corona sensor, the heated diode sensor features a much longer lifetime, up to 500 working hours. It's more accurate and minimizes false alarm. Moreover, it can detect more refrigerants and be more versatile. The halogen tester includes refrigerant sensor head, mains unit, 3 AA Alkaline batteries, operator's manual and performance report.
Elitech LD-100+ Features
 |
 |
 |
|

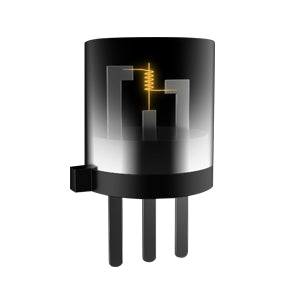

Heated Diode Sensor* The extremely high sensitivity of 3g/y Enables detection of even the smallest leaks |

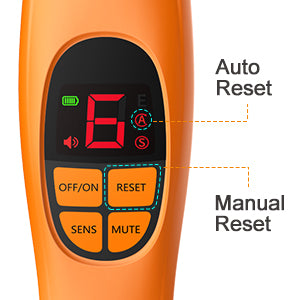

Auto and Manual Reset* |

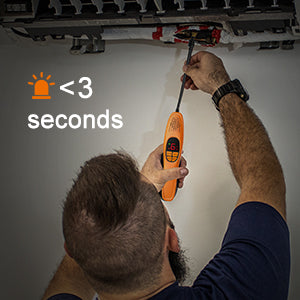

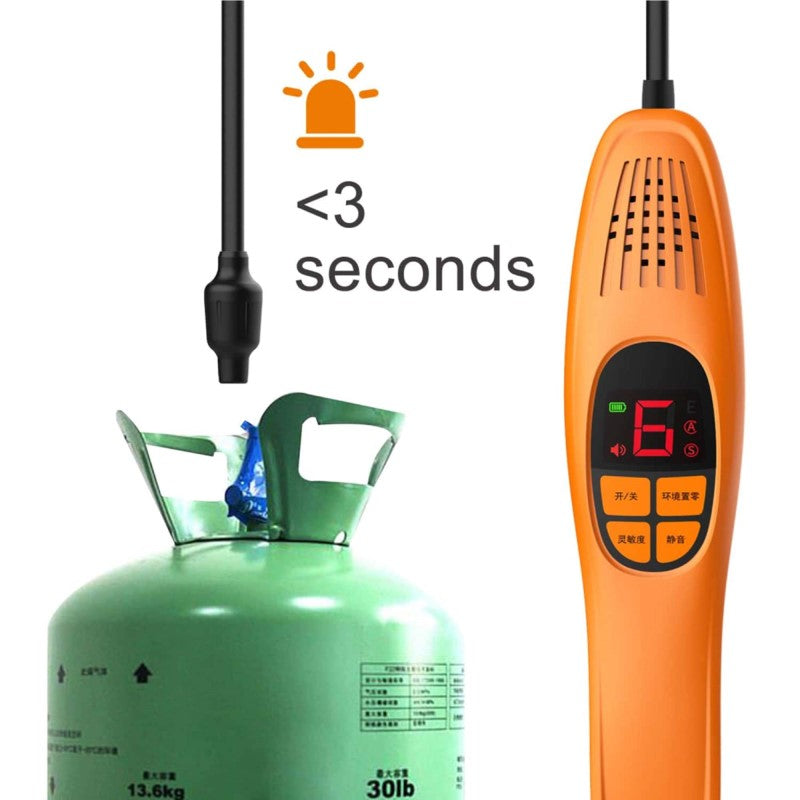

Quick Response* Quick response within 3 seconds for prompt detection |
 |
 |
 |
|

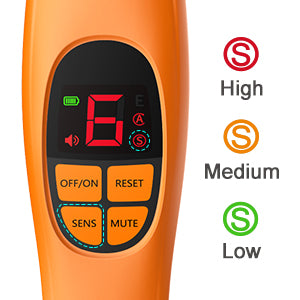

3 Adjustable Sensitivity Levels* CIt detects R11/R22/R134a/R404a/R410a and all halogenated refrigerants including CFCs, HFCs, HCFCs, HCs and HFOs |

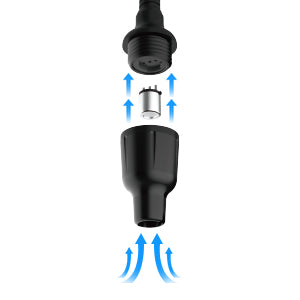

Pump-Suction Structure* Added accuracy and prompt reaction, in the meantime, to avoid moisture damage to the sensor |

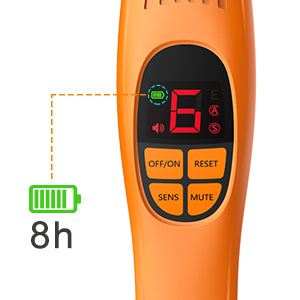

Power Indicator* Long battery working hour, lasting for up to 8 hours. The power indicator on-screen shows power left clearly |
Product Specifications
| Sensor Type | Heated diode |
| Detectable Gases | CFCs, HFCs, HCFCs, HCs, HFOs, and blends |
| Sensitivity | 3g/y |
| Response Time | <3s |
| Reset | Automatical and Manual |
| Alarm Mode | Audible and visual alarm |
| Probe Length | 42cm/16.5in |
| Working Hour | 8h continuous use on a single charge |
| Operating Environment | Temperature: -10°C~ 52°C; Humidity: Maximum 90%RH (non-condensing) |
| Package Size | 430x245x700 mm |
| Package Weight | 350g (12.3oz) |
| Battery | 3x AA Alkaline batteries (included) |
| Service | 1-year repair service |
Elitech LD-100+ Related Documents
- Elitech LD-100+ Refrigerant Leak Detector User Manual
- Elitech LD-100+ Refrigerant Leak Detector ECM Certification
