Elitech ILD-100 Electronic Refrigerant Leak Detector HVAC, Freon Leak Detector, Infrared Sensor up to 10 years' service life, 4g/yr
Elitech ILD-100 with leak detector for all common refrigerants CFC, HFC, HCFC, PFC, and HFO, includes leak detector, charging cable, replacement filters, and carrying case. The infrared sensor features a long service life of over...
Elitech ILD-100 with leak detector for all common refrigerants CFC, HFC, HCFC, PFC, and HFO, includes leak detector, charging cable, replacement filters, and carrying case. The infrared sensor features a long service life of over 10-years, undegradable sensitivity, and limiting false alarms, which is the best sensor in the leak detection system. Moreover, with exclusive ergonomic design and innovative large TFT LCD screen, the detector optimizes the user experience and presents the detection results more intuitively and diversely. With ILD-100, you will ideally equip to carry out quick, reliable leakage detection.
Elitech ILD-100 Features
Precise and High Sensitivity* The freon leak detector has a maximum sensitivity of 4g/yr, which enables the detection of even the smallest leaks. Sensitivity can also be adjusted in three different levels to pinpoint leakage quickly and precisely.

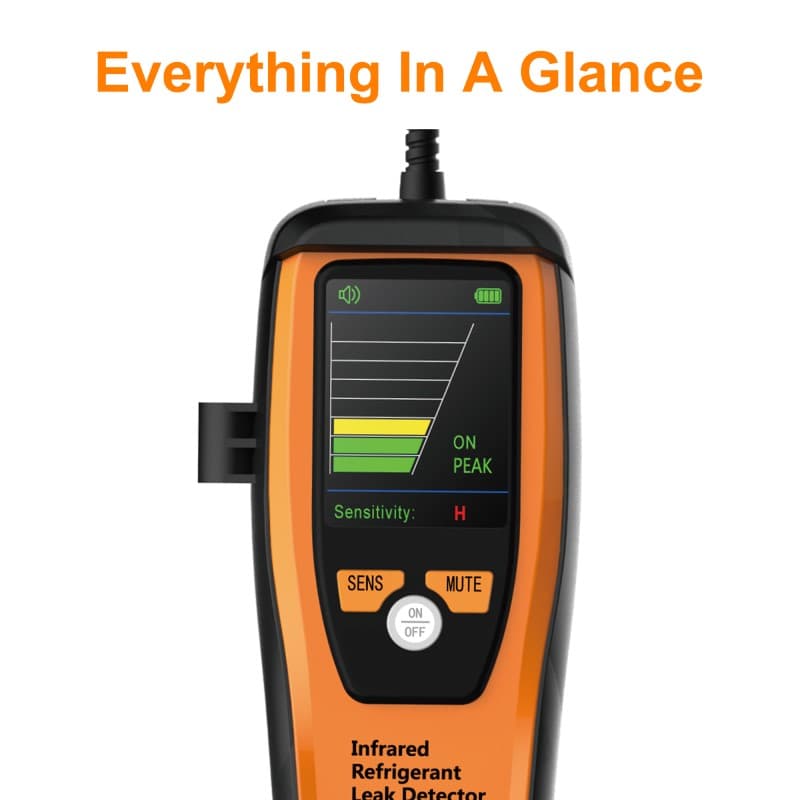

Large TFT LCD Screen* Very rarely in the industry, Elitech ILD-100 is equipped with a 2.8in. TFT LCD screen, to show real-time gas leakage concentration, sensitivity level, power, buzzer status, and false alarm. You can know everything about the detector in one glance.
Rechargeable Lithium-ion Battery* Built-in 3.7V 3000mA lithium-ion battery can work continuously for 6 hours upon one full charge. USB charging cable is included in the package for easy recharging through the Type C port.
An All-rounder in Leak Detection* Elitech ILD-100 is a fast,reliable leak detector for all common refrigerants, including R134a, R410A, R32, R22, HFO-1234 and all HFCs, HCFCs, CFCs, PFCs.
 |
 |
 |
|
An All-Rounder in Leak Detection*
Detect all common refrigerants including R134a, R410A, R32, R22, HFO-1234 and all HFCs, HCFCs, CFCs, PFCs |

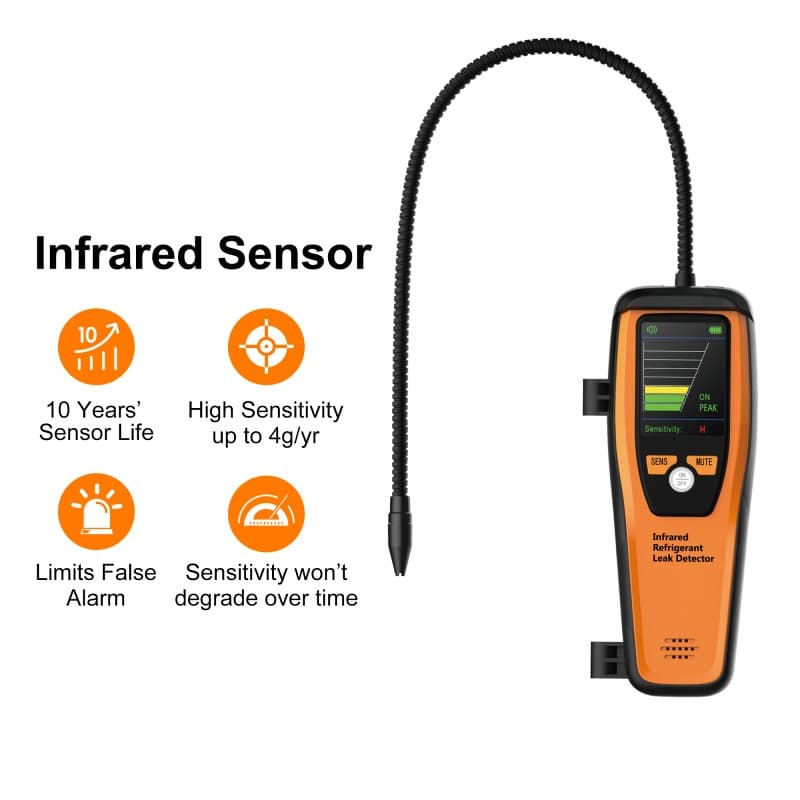

Infrared Sensor*
10 Years’ Sensor Life; High Sensitivity up to 4g/yr; Limits False Alarm; Sensitivity won’t degrade over time |
Large TFT LCD Screen*
Everything about the detector and task can be viewed easily just in one glance |
 |
 |
 |
|
Sensitivity Adjustable*
Sensitivity can be adjusted in three different levels: High, Medium and High, to pinpoint leakage quickly and precisely |
Rechargeable Lithium-ion Battery*
Built-in 3.7V 3000mA lithium-ion battery can work continuously for 6 hours upon one full charge |
Earphone Jack*
Earplug connection for safe leakage detection in loud environments |
Elitech ILD-100 Leak Detector Parameter
|
Sensor Type
|
Infrared
|
|
Sensor Sensibility
|
Max. 4g/year
|
|
Sensor Life
|
10 years
|
|
Detectable Gases
|
R134a, R410A, R32, R22, HFO-1234 and all HFCs, HCFCs, CFCs, PFCs.
|
|
Auto OFF
|
After 10min of inactivity
|
|
Power
|
Built-in lithium battery 3.7V 3000mA
|
|
Battery Runtime
|
Up to 6 hours continuously
|
|
Charging Time
|
Within 4hrs
|
|
Storage Temperature
|
-20°C~ 60°C (-4°F~ 140°F)
|
|
Operating Environment
|
Temperature: -10°C~ 52°C (-4°F~ 140°F) Humidity: 50%~85% RH
|
|
Alarm Mode
|
Audible and Visual
|
|
Tool Size
|
95*45*190mm (3.75*1.76*7.50in.)
|
|
Tool Weight
|
415g (14.6oz)
|
|
Certification
|
CE, SAE_J1627, SAE_J1791, SAE_J2913, EN14624:2012
|

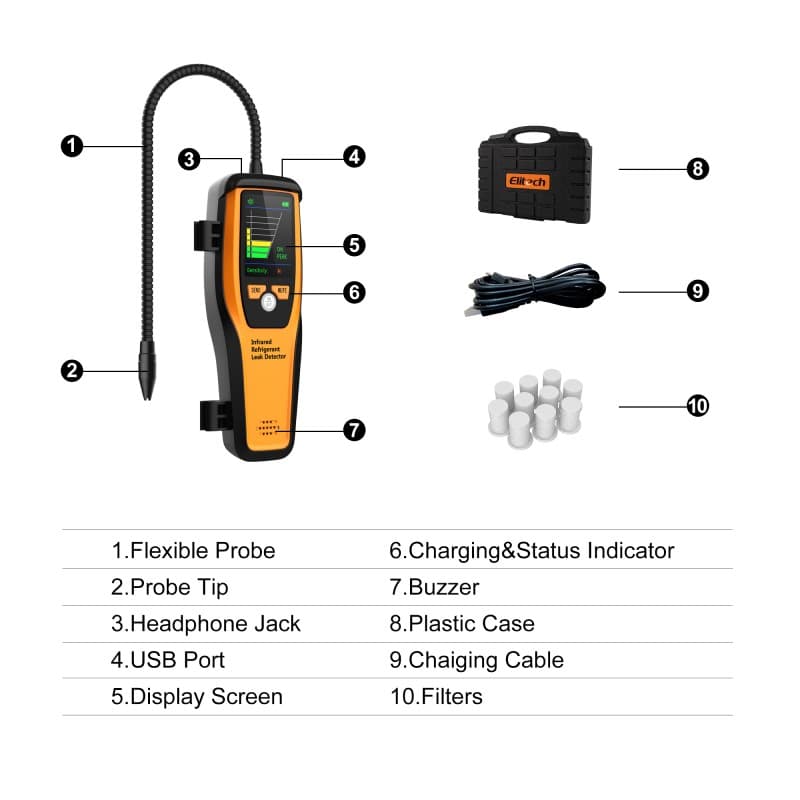

Elitech ILD-100 Package
1 x infrared leak detector
1 x USB charging cable
10 x replacement filters
1 x sturdy carrying case
Elitech ILD-100 Related Documents
- Elitech ILD-100 Refrigerant Leak Detector User Manual
- Elitech ILD-100 Refrigerant Leak Detector CE Certification
