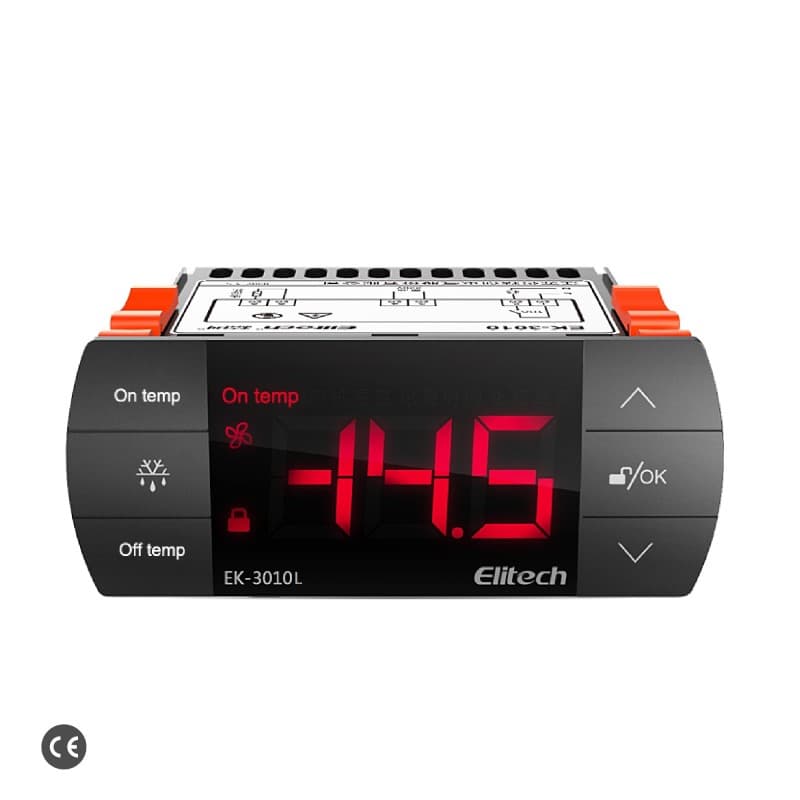

Elitech EK-3010L Two-way Output Digital Temperature Controller Heating or Cooling Mode With Lighting Output, Temperature Probe Sensor Input, Touch-key
Elitech EK-3010L is a customed type of Elitech EK-3010. Based on EK-3010, It adds lighting output control and changes the temperature relay's current from 10A to 16A, which directly drives a single-phase compressor 1HP.
EK-3010L is a temperature controller...
Elitech EK-3010L is a customed type of Elitech EK-3010. Based on EK-3010, It adds lighting output control and changes the temperature relay's current from 10A to 16A, which directly drives a single-phase compressor 1HP.
EK-3010L is a temperature controller with touch screen buttons. It is suitable for temperature control of refrigeration or heating equipment. Due to its touch buttons, Elitech equipped the EK series with a key lock function to avoid accidental touches that may cause the parameters to change. The touch button adopts high-precision digital capacitance measurement technology, which can avoid various interferences such as water droplets; compared with mechanical buttons, there is no mechanical action, long life, and stable performance.
One-way sensor input: temperature probe sensor.
Two-way control output: cooling/ heating output (16A), lighting output(10A)
Parameter
| Model | EK-3010L |
| Operating Voltage | 220VAC±10%; 50/60Hz |
| Overall Power Consumption | <5W |
| Temperature Measurement Range | -40℃-99℃ |
| Temperature Control Range | -40℃-85℃ |
| Temperature Measurement Accuracy | ±1℃(-30℃～50℃ ), ±2℃(Others) |
| Display Resolution | 0.1℃ |
| Work Humidity | 10%~90% (no condensing) |
| Product Size | 78.5×34.5×82（mm） |
| Mounting Dimension | 71×29 (mm) |
| Rated Current of Output Relay (Heating/Cooling) | 16A/220VAC |
| Rated Current of Output Relay (Lighting) | 10A/220VAC |
| Sensor Type | NTC (10KQ/25℃, B value 3435K) |
Function
| Model | Control Output | Signal Input | Other | |||||
| Cooling/Heating (16A) | Lighting (10A) | Temperature Sensor | Buzzer | Over-temperature Alarm | ||||
| EK-3010L | √ | √ | √ | √ | √ | |||
With temperature measurement, temperature display, temperature control, light control, temperature calibration, over-temperature alarm, and sensor fault alarm function. One-touch restoration of original setting values for easy re-adjustment of parameters. Elitech EK-3010 temperature controller is suitable for temperature control of cold storage, freezer, operating console refrigeration equipment, and heating equipment.
Package
- Elitech EK-3010L Temperature Controller *1
- EK Series Temperature Probe Sensor *1
- User Manual *1
EK Series Touch Key Temperature Controller Comparison Chart
| Model | Control Output | Sensor | Communication Function | ||||
| Cooling | Heating | Defrost | Fan | Light | Defrost Sensor | ||
| E-1000 | 10A | 10A | / | / | 10A | / | / |
| EK-3010 | Cooling / Heating (10A) | / | / | / | / | / | |
| EK-3010L | Cooling / Heating (16A) | / | / | 10A | / | / | |
| EK-3020 | 10A | / | 10A | / | / | / | / |
| EK-3021 | 10A | / | 10A | / | / | √ | / |
| EK-3030 | 10A | / | 10A | 10A | / | √ | / |
| EK-3030E | 10A | / | 10A | 10A | / | √ | 485 interface |
Elitech EK-3010L Related Documents
Elitech EK-3010L Temperature and Lighting Controller User Manual
