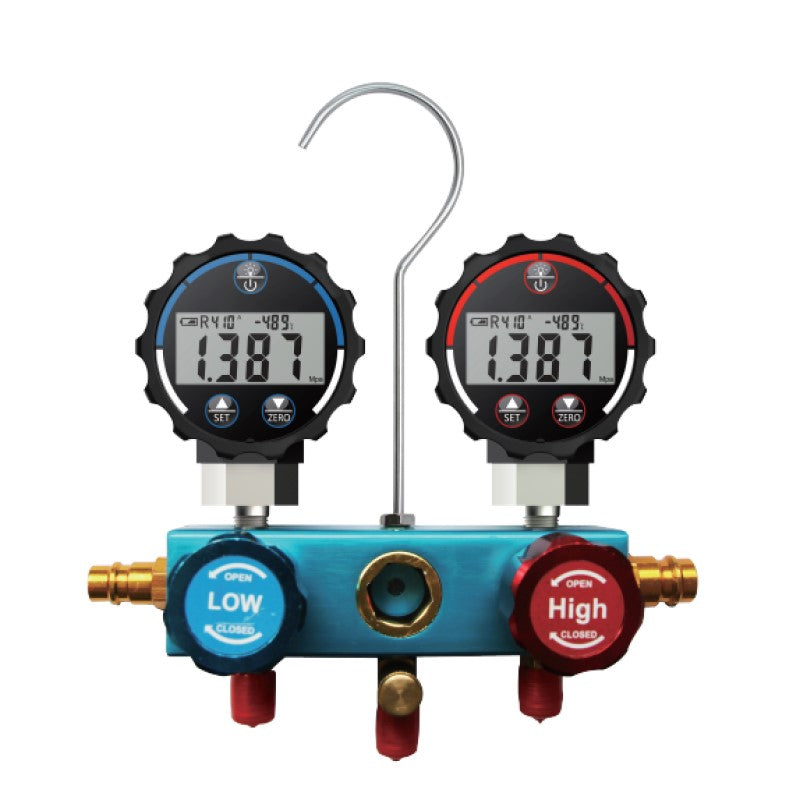

DMG-1 double digital pressure gauge
2
sold in last
8
hours
DMG-1
Application

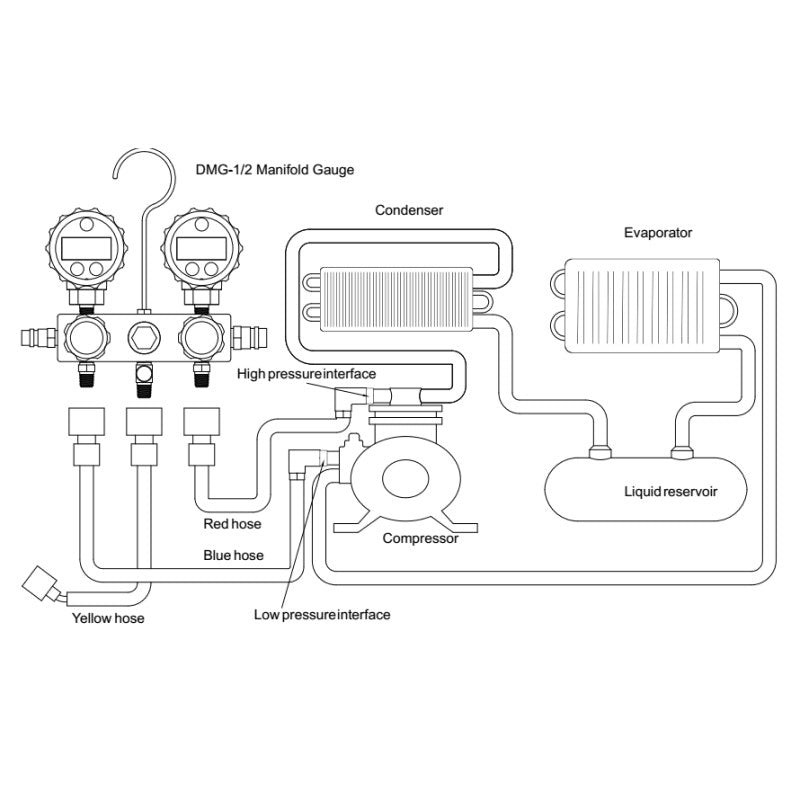

This product is mainly used for air exhaust and compression in refrigeration and maintenance operation, refrigerant charging of air-conditioning systems. It can display pressure in real time.
Feature
High-quality dual-table valve with imported pressure sensor, high precision, excellent workmanship, stable performance; Large screen, display clear...
This product is mainly used for air exhaust and compression in refrigeration and maintenance operation, refrigerant charging of air-conditioning systems. It can display pressure in real time.
Feature
High-quality dual-table valve with imported pressure sensor, high precision, excellent workmanship, stable performance; Large screen, display clear...
customers are viewing this product
Application
This product is mainly used for air exhaust and compression in refrigeration and maintenance operation, refrigerant charging of air-conditioning systems. It can display pressure in real time.
Feature
High-quality dual-table valve with imported pressure sensor, high precision, excellent workmanship, stable performance; Large screen, display clear and intuitive, and high grade refrigerant pipes, reducing leaks; Battery-powered, low power consumption, long life; Rubber jacket, beautiful and durable
Pressure Measuring Range -0.100~5.000MPa
Operating Temperature and Humidity -10~60℃; 35%~85%RH
Resolution pressure: 0.001MPa; temperature: 0.1℃
Accuracy pressure: ±0.5%FS (22℃~28℃); temperature: ±1℃
Battery Life six months
Power supply 3V CR2450 button battery
Sampling Period 1.2s
Battery Indicator displays "LOB" at low battery
Display 37mm x 17mm LCD/green backlight
Measurement Units MPa, kPa, bar, psi, kgf/cm2, mmHg
Out-of-Range Alarm pressure: FULL；temperature：——
Warranty One year
Double core valve 2
1.5m fluorine hose 3,Min pressure: 800psi; max pressure: 4000psi
High and low pressure test connector 2, Low side: blue; high side: red
Corkscrew 1
Dual purpose valve wrench 1
R410A adapter 1
Blow molding package
Manual 1
This product is mainly used for air exhaust and compression in refrigeration and maintenance operation, refrigerant charging of air-conditioning systems. It can display pressure in real time.
Feature
High-quality dual-table valve with imported pressure sensor, high precision, excellent workmanship, stable performance; Large screen, display clear and intuitive, and high grade refrigerant pipes, reducing leaks; Battery-powered, low power consumption, long life; Rubber jacket, beautiful and durable
Pressure Measuring Range -0.100~5.000MPa
Operating Temperature and Humidity -10~60℃; 35%~85%RH
Resolution pressure: 0.001MPa; temperature: 0.1℃
Accuracy pressure: ±0.5%FS (22℃~28℃); temperature: ±1℃
Battery Life six months
Power supply 3V CR2450 button battery
Sampling Period 1.2s
Battery Indicator displays "LOB" at low battery
Display 37mm x 17mm LCD/green backlight
Measurement Units MPa, kPa, bar, psi, kgf/cm2, mmHg
Out-of-Range Alarm pressure: FULL；temperature：——
Warranty One year
Double core valve 2
1.5m fluorine hose 3,Min pressure: 800psi; max pressure: 4000psi
High and low pressure test connector 2, Low side: blue; high side: red
Corkscrew 1
Dual purpose valve wrench 1
R410A adapter 1
Blow molding package
Manual 1
